| Brand Name : | SFT |
| Model Number : | RLK130 |
| Price : | negotiable |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 50000PCS/MONTH |
| Delivery Time : | 20-45DAYS |

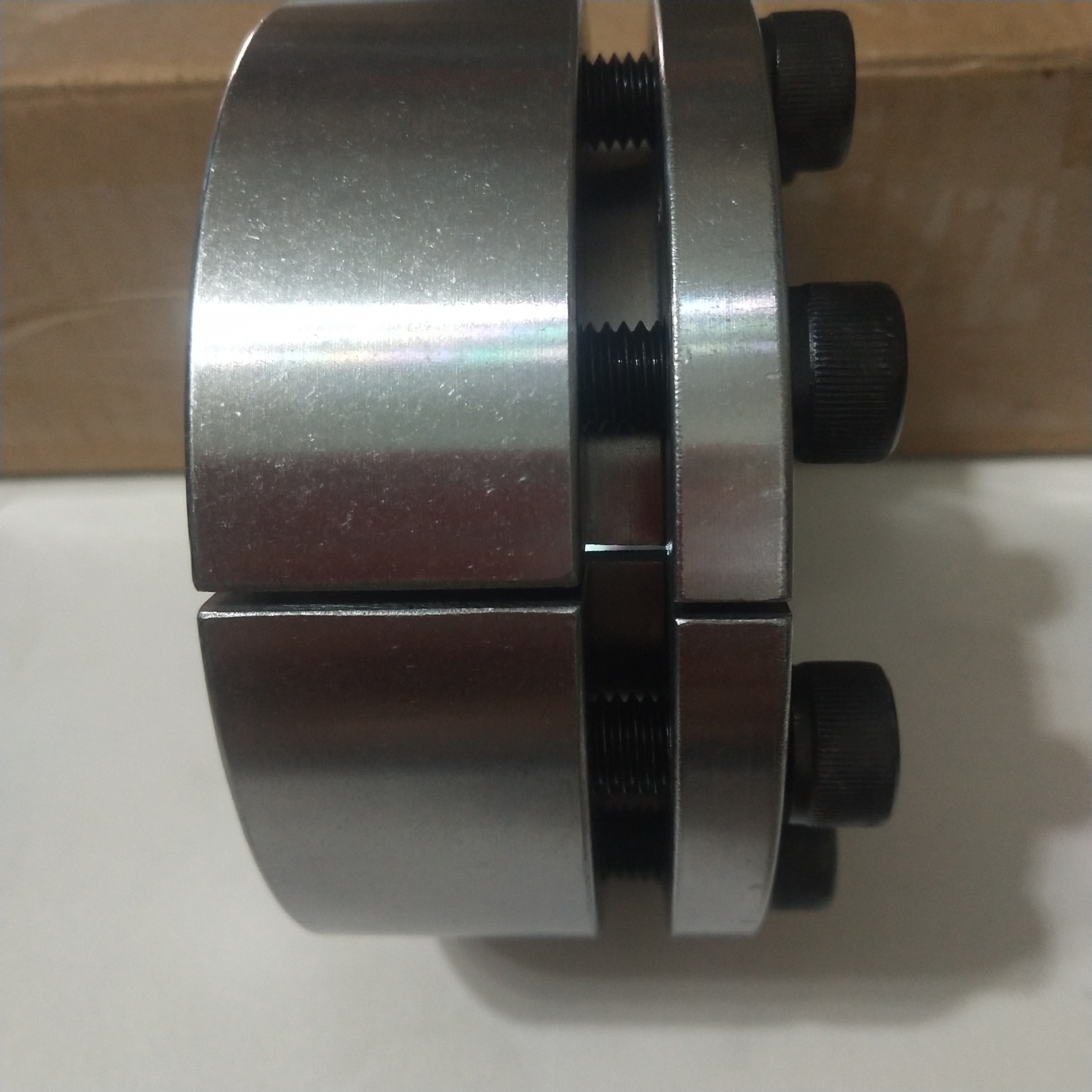

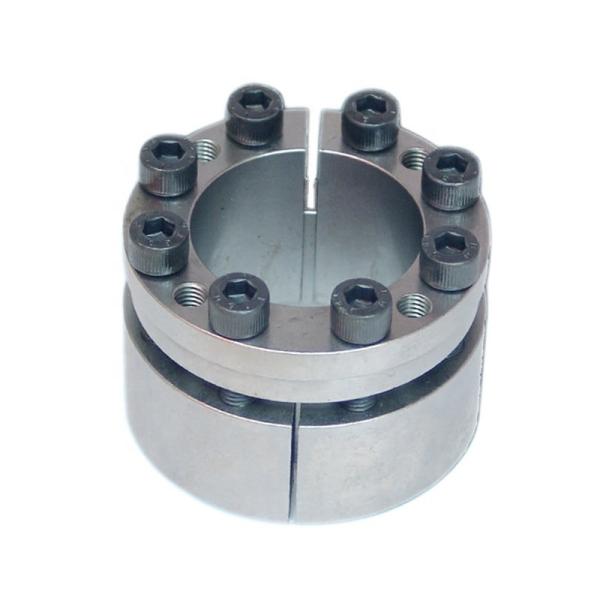

RLK130 Shaft Coupling Keyless Locking for printing machinery
Description of RLK130 Shaft Coupling Keyless Locking for printing machinery
It can replace single keywey and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub ,inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft .

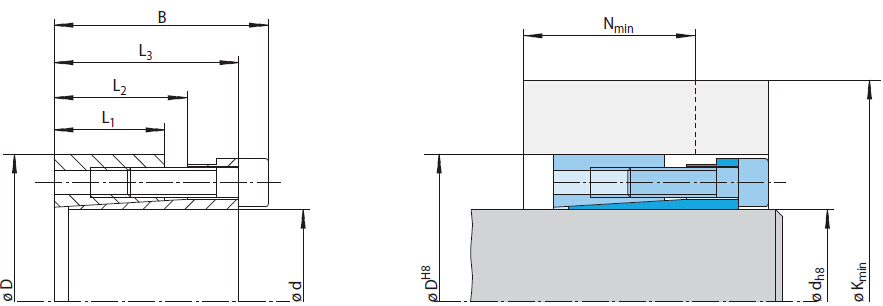

Data sheet of RLK130 Shaft Coupling Keyless Locking for printing machinery
| Model | RLK130 Power Locking Assembly | |
| Pressure on Shaft (N/mm2) | 174-309 | |
| Pressure on Hub (N/mm2) | 112-184 | |
| Rated Load (kN.m) | Force | 53-640 |
| Torque | 0.53-57.5 | |
| Inner Race Size (mm) | 20-180 | |
| Outer Race Size (mm) | 47-235 | |
| Thickness (mm) | 48-90 | |
| Weight (Kg) | 0.4-11 | |
Feature:
1. Easy to install and disassemble;
2. Good exchangeability;
3. Heavy load born by joint with Keyless
Locking Devices;
4. Long lifetime and high efficient
transmitting;
5. While running under overload, Keyless
Locking Devices can protect the
equipment from breakdown.
The power lock is a keyless shaft-hub locking device for connecting
hubs and shafts with high torque transmission.
|
|
